2200H

Specifications

• Panel Size: 55.88CM/22’’ INCH
• Recommend Resolution: 1440 X 900@60HZ
• Dot Pitch: 0.2835mm
• Brightness: 250cd/m2 (max.)
• Display Type: TN w/LED backlight
• Contrast Ratio: 1000:1 (Static) 1000000:1(dynamic)
• Viewing Angle: H: 130°/V: 110° (CR>10)
• Response Time: 2ms (TR), 6ms (TF)
• Display Colour: 16.7M
• Input Connector: VGA ，HDMI
• Frequency: Hor. 31~80 KHz, Ver. 56~75Hz
• Display Mode: VGA, SVGA, SXGA, WXG
• Front Control: Power on/off with LED, OSD Menu, +/- adjustment, Auto
• Operation Conditions: Temperature: 0°C~ 50°C Humidity: 20% – 60%
• Storage Conditions: Temperature: -20°C~ 60°C Humidity: 20% – 80%
• Power Supply: AC 185~255V 1.0A，50/60Hz
• Power Consumption: 22W (Max.)

SYS-USB-005

Features:

• High quality sound unit
• Extreme bass custom tuned Audio drives
• Soft ear pad, easy for wearing
• Omnidirectional microphone
• Adjustable headband
• Rotatable mic, with Good performance sliging
• Storage and noise canceling mic
• Support Music player, Gaming, Laptop…Etc.

Specification:

• Driver Unit: 40MM
• Impedance: 32 ohm
• Sensitivity: 110db
• Frequency Response: 20-20,000Hz
• Max Input Power: 50Mw
• Mic Sensitivity Range: 20-20,000Hz
• Cord length: 2.1M
• Distortion Degree: <0.1%

SYS-USB-003

Features:

• High quality sound unit
• Extreme bass custom tuned Audio drives
• Soft ear pad, easy for wearing
• Omnidirectional microphone
• Adjustable headband
• Rotatable mic, with Good performance sliging
• Storage and noise canceling mic
• Support Music player, Gaming, Laptop…Etc.

Specification:

• Driver Unit: 40MM
• Impedance: 32 ohm
• Sensitivity: 110db
• Frequency Response: 20-20,000Hz
• Max Input Power: 50Mw
• Mic Sensitivity Range: 20-20,000Hz
• Cord length: 2.1M
• Distortion Degree: <0.1%

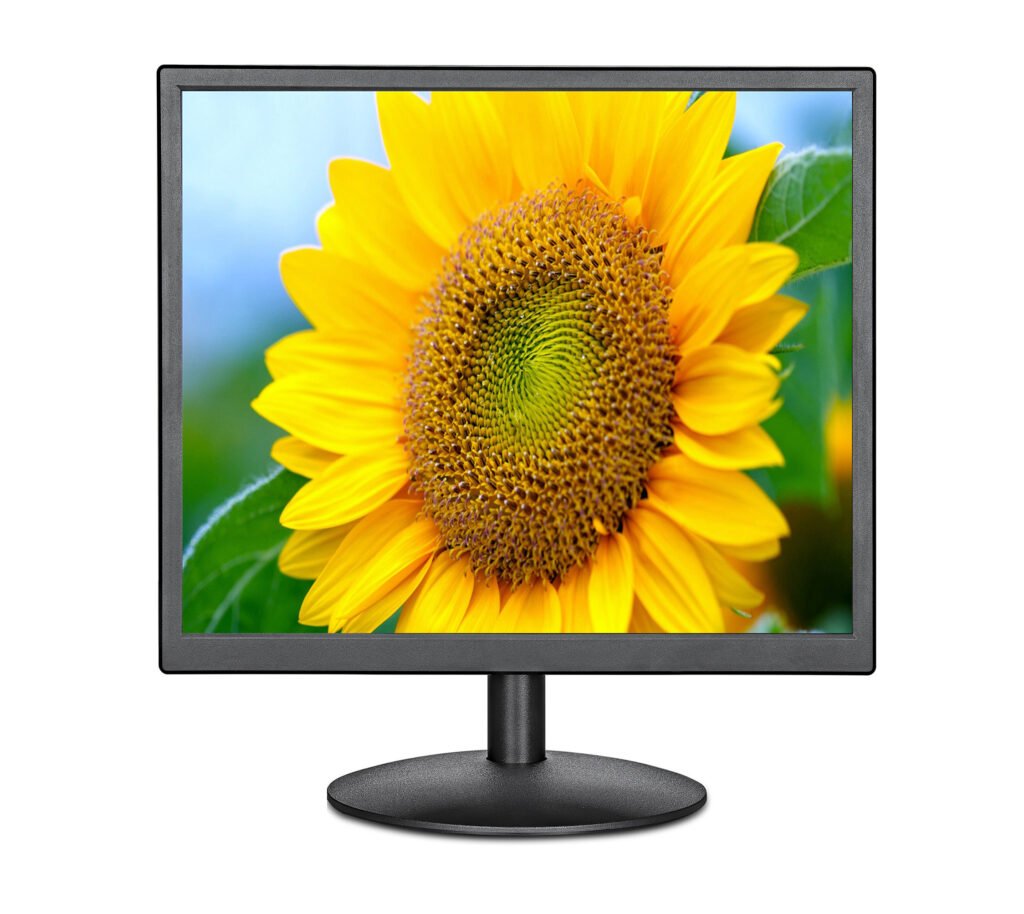

1712H

Specifications

• Panel Size: 43.18CM/17 (15.4) INCH
• Recommend Resolution: 1280 X 1024
• Dot Pitch: 0.255mm
• Brightness: 220cd/m2 (max.)
• Viewing Angle: H: 90°/ V: 65° (CR≥10)
• Response Time: 5ms (TD)
• Input Connector: VGA ，HDMI
• Frequency: Hor. 31~80 KHz, Ver. 56~75Hz
• Display Mode: VGA, SVGA, SXGA, WXG
• Front Control: Power on/off with LED, OSD Menu, +/- adjustment, Auto
• Operation Conditions: Temperature: 0°C~ 50°C Humidity: 20% – 60%
• Storage Conditions: Temperature: -20°C~ 60°C Humidity: 20% – 80%
• Power Supply: AC 180~240V 1.0A，50/60Hz
• Power Consumption: 12W (Max.)

1542H

Specifications

• Panel Size: 38.1CM/15 (15.1) INCH
• Recommend Resolution: 1024x 768
• Dot Pitch: 0.297mm
• Brightness: 220cd/m2 (max.)
• Viewing Angle: H: 90°/ V: 65° (CR≥10)
• Response Time: 3ms (TR), 8ms (TF)
• Input Connector: VGA ，HDMI
• Frequency: Hor. 31~80 KHz, Ver. 56~75Hz
• Front Control: Power on/off with LED, OSD Menu, +/- adjustment, Auto
• Operation Conditions: Temperature: 0°C~ 50°C Humidity: 20% – 60%
• Storage Conditions: Temperature: -20°C~ 60°C Humidity: 20% – 80%
• Power Supply: AC 180~255V 1.0A，50/60Hz
• Power Consumption: 12W (Max.)

1901H

Specifications

• Panel Size: 48.26CM/19’’ INCH
• Recommend Resolution: 1440 X 900@60HZ
• Dot Pitch: 0.2835mm
• Brightness: 250cd/m2 (max.)
• Display Type: TN w/LED backlight
• Contrast Ratio: 1000:1 (Static) 1000000:1(dynamic)
• Viewing Angle: H: 130°/V: 110° (CR>10)
• Response Time: 2ms (TR), 6ms (TF)
• Display Colour: 16.7M
• Input Connector: VGA ，HDMI
• Frequency: Hor. 31~80 KHz, Ver. 56~75Hz
• Display Mode: VGA, SVGA, SXGA, WXG
• Front Control: Power on/off with LED, OSD Menu, +/- adjustment, Auto
• Operation Conditions: Temperature: 0°C~ 50°C Humidity: 20% – 60%
• Storage Conditions: Temperature: -20°C~ 60°C Humidity: 20% – 80%
• Power Supply: AC 185~255V 1.0A，50/60Hz
• Power Consumption: 22W (Max.)
